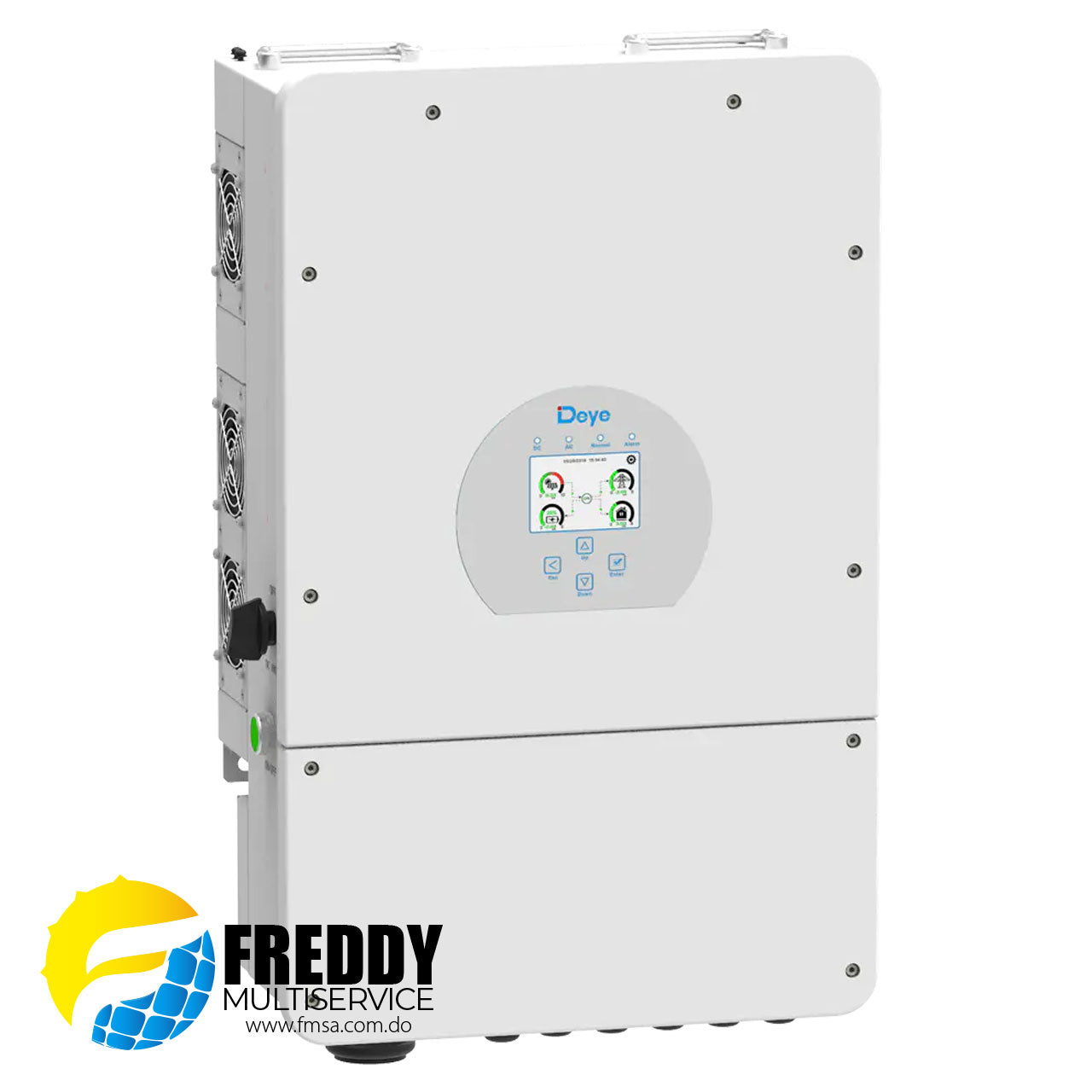

The series, SUN-5/6K-SG01LP1-US SUN-7.6/8K-SG01LP1-US, is a single-phase low voltage (48V) hybrid inverter that enables enhanced energy independence and maximizes self-consumption through export limit feature and “time of use” function. With the frequency droop control algorithm, this series product supports single phase and three phase parallel application, and the Max. parallel units is up to 16pcs.
Remotely shutdown function
Smart Monitoring Platform
Thanks to the smart monitoring platform, Deye full series inverter products support remotely shutdown immediately when accident occurs. Setting parameters and FW update remotely, which makes PV plant O&M easier.
- Colorful touch LCD, IP65 protection degree
- 6 time periods for battery charging/discharging
- Max. charging/discharging current of 190A
- Max.16pcs parallel
- DC couple and AC couple to retrofit existing solar system
- Support storing energy from diesel generator
- Max. battery charge efficiency of 95.4%
- Unique Smart Load application and Grid peak shaving function
- 4ms fast transfer from on-grid to off-grid mode, ensuing the traditional fixed frequency air conditioner works well
- Certified by UL, CE, IEC, VDE, NRS, VFR, AS4777.2, CEI and INMETRO etc.
Technical Specifications
Model | SUN-5K-SG01LP1-US | SUN-6K-SG01LP1-US | SUN-7.6K-SG01LP1-US | SUN-8K-SG01LP1-US |
Battery Input Data | ||||
Battery Type | Lead-acid or Lithium-ion | |||
Battery Voltage Range (V) | 40~60V | |||
Max. Charging Current (A) | 120A | 135A | 190A | 190A |
Max. Discharging Current (A) | 120A | 135A | 190A | 190A |
Charging Curve | 3 Stages / Equalization | |||
External Temperature Sensor | Yes | |||
Charging Strategy for Li-Ion Battery | Self-adaption to BMS |
PV String Input Data | ||||
Max. DC Input Power (W) | 6500W | 7800W | 9880W | 10400W |
Rated PV Input Voltage (V) | 370V(125V~500V) | |||
Start-up Voltage (V) | 125V | |||
MPPT Range (V) | 150V-425V | |||
Full Load DC Voltage Range (V) | 300V-425V | 200V-425V | ||
PV Input Current (A) | 13A+13A | 26A+13A | 26A+26A | |
Max. PV ISC (A) | 22A+22A | 44A+22A | 44A+44A | |
Number of MPPT Trackers | 2 | |||
Number of Strings per MPPT Tracker | 1 | 2+1 | 2 |
AC Output Data | ||||||
Rated AC Output and UPS Power (W) | 5000W | 6000W | 7600W | 8000W | ||
Max. AC Output Power (W) | 5500W | 6600W | 8360W | 8800W | ||
Peak Power (off grid) | 2 times of rated power, 10 S | |||||
AC Output Rated Current (A) | 20.8/24 | 25/28.8 | 31.7/36.5 | 34.5/33 | 33.3/38.5 | 36.4/34.8 |
Max. AC Current (A) | 22.9/26.4 | 27.5/31.7 | 34.8/40.2 | 38/36.3 | 36.7/42.3 | 40/38.3 |
Max. Continuous AC Passthrough (A) | 40A | 50A | ||||
Output Frequency and Voltage |
50 / 60Hz; L1/L2/N(PE) 120/240Vac (split phase), 208Vac (2/3 phase),
L/N/PE 220/230Vac (single phase)
|
|||||
Grid Type | Split phase; 2/3 phase; Single Phase | |||||
Current Harmonic Distortion | THD<3% (Linear load<1.5%) |
Efficiency | |
Max. Efficiency | 97.60% |
Euro Efficiency | 97.00% |
MPPT Efficiency | 99.90% |
Protection | |
PV Input Lightning Protection | Integrated |
Anti-islanding Protection | Integrated |
PV String Input Reverse Polarity Protection | Integrated |
Insulation Resistor Detection | Integrated |
Residual Current Monitoring Unit | Integrated |
Output Over Current Protection | Integrated |
Output Shorted Protection | Integrated |
Output Over Voltage Protection | Integrated |
Surge protection | DC Type II / AC Type II |
Certifications and Standards | |
Grid Regulation | CEI 0-21, VDE-AR-N 4105, NRS 097, IEC 62116, IEC 61727, G99, G98, VDE 0126-1-1, RD 1699, C10-11 |
Safety EMC / Standard | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 |
General Data | |
Operating Temperature Range (℃) | -40~60℃, >45℃ Derating |
Cooling | Smart cooling |
Noise (dB) | <30 dB |
Communication with BMS | RS485; CAN |
Weight (kg) | 32 |
Size (mm) | 420W×670H×233D |
Protection Degree | IP65 |
Installation Style | Wall-mounted |
Warranty | 5 years |
